A roof over the kitchen. Open sky when you want it.
A custom StruXure Pivot 6 for the Cooke residence in Cutler Bay. Scroll down to watch it go up.
Scroll
Prepared forRobert Cooke
LocationCutler Bay, FL
SystemPivot 6 Flat · 14′ × 28′
Design specialistEric Shaw
A note for Robert
South Florida gives you a few good hours outside before the afternoon storm rolls in. This roof is built to give you the rest of the day back.
Shade over the bar after a morning on the water or a round of golf. Cover for the grill when the rain comes through. Light to keep the evening going long after sunset.
You have built a career on getting the details right, so we have laid out every one of ours below: the build, the specs and the numbers. Consider it our evidence.
The StruXure South Florida teamYour project
Shade, rain cover and light over the outdoor kitchen.
A 14′ × 28′ motorized louvered roof, attached to the house and carried on two columns, covering the bar and grill.
Two zones of Flat 6 louvers pivot up to 170°, so you can let the sun in, angle it, or close the roof tight. A rain sensor closes it on its own when the weather turns, and water runs off through the integrated gutters and down the columns instead of onto your guests.
392square feet of covered outdoor living
170°louver pivot, from open sky to sealed roof
2zones, run together or separately
4recessed warm-white LED lights
01 · Today
An open patio.
The kitchen, the bar and the pool, with nothing overhead but sun and rain.
02 · Footings & columns
Two 8″ columns.
Engineered isolated footings and custom welded post bases built for South Florida wind loads, with 10′ structural columns on top.
03 · Frame
Beams tie it to the house.
2″ × 10″ structural beams span the columns and attach to the house with a 7″ super gutter.
04 · Louvers
Two zones of Flat 6.
Dual-wall louvers that pivot up to 170°. Open, they stripe the deck with light and let the breeze through.
05 · Close the roof
One tap, full cover.
The X Drive motor closes both zones into a sealed roof, and the rain sensor does it for you when a storm rolls in.
06 · Evening
Lit for the night.
Four recessed warm-white LEDs on the fan beam, plus Sonance outdoor speakers.
07 · Gutter lights
Set the mood.
LED strips hidden in the gutter wash the louvers in color. Available as an upgrade, ask Eric for pricing.
Day & night
Same space, two moods.

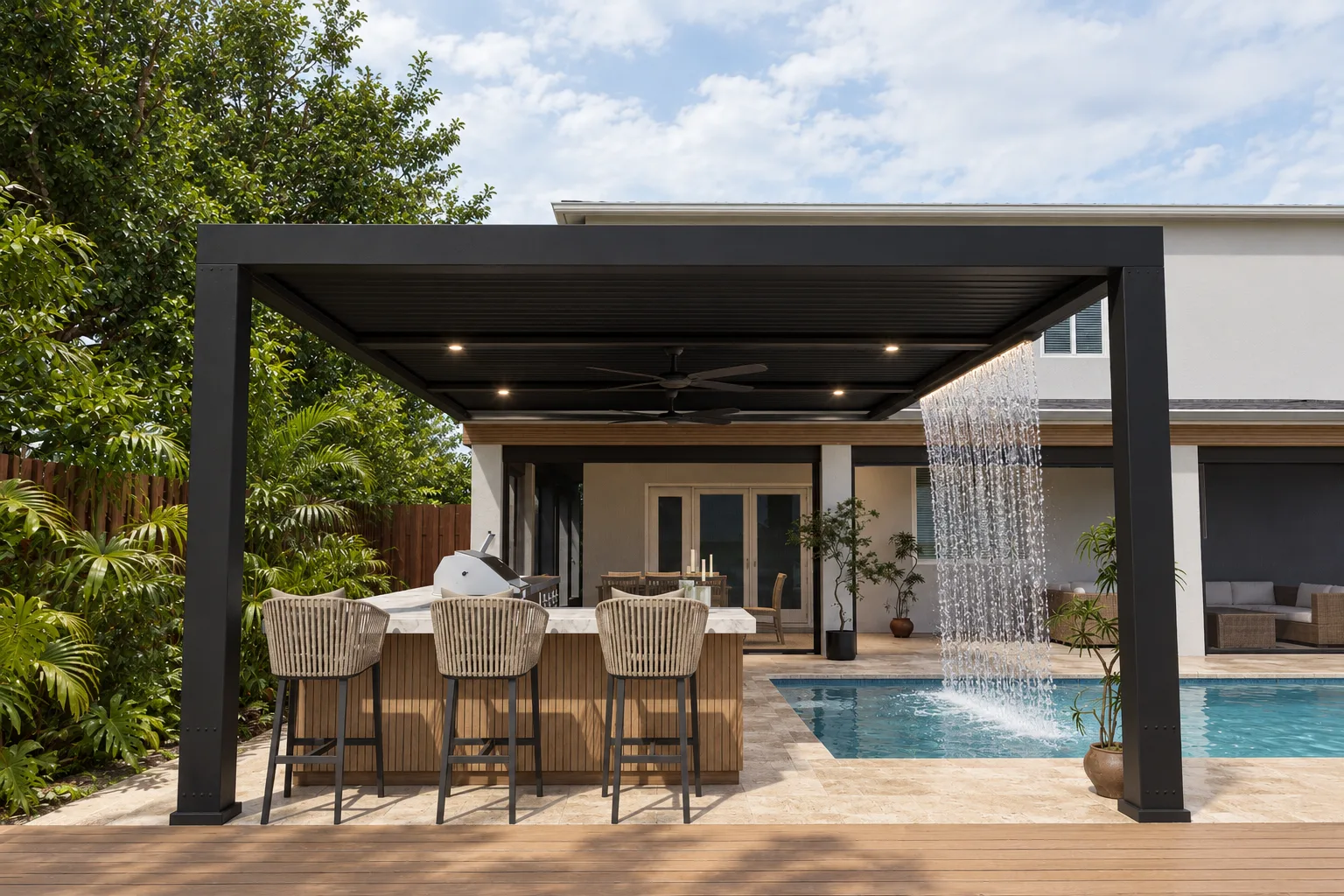

From the deck

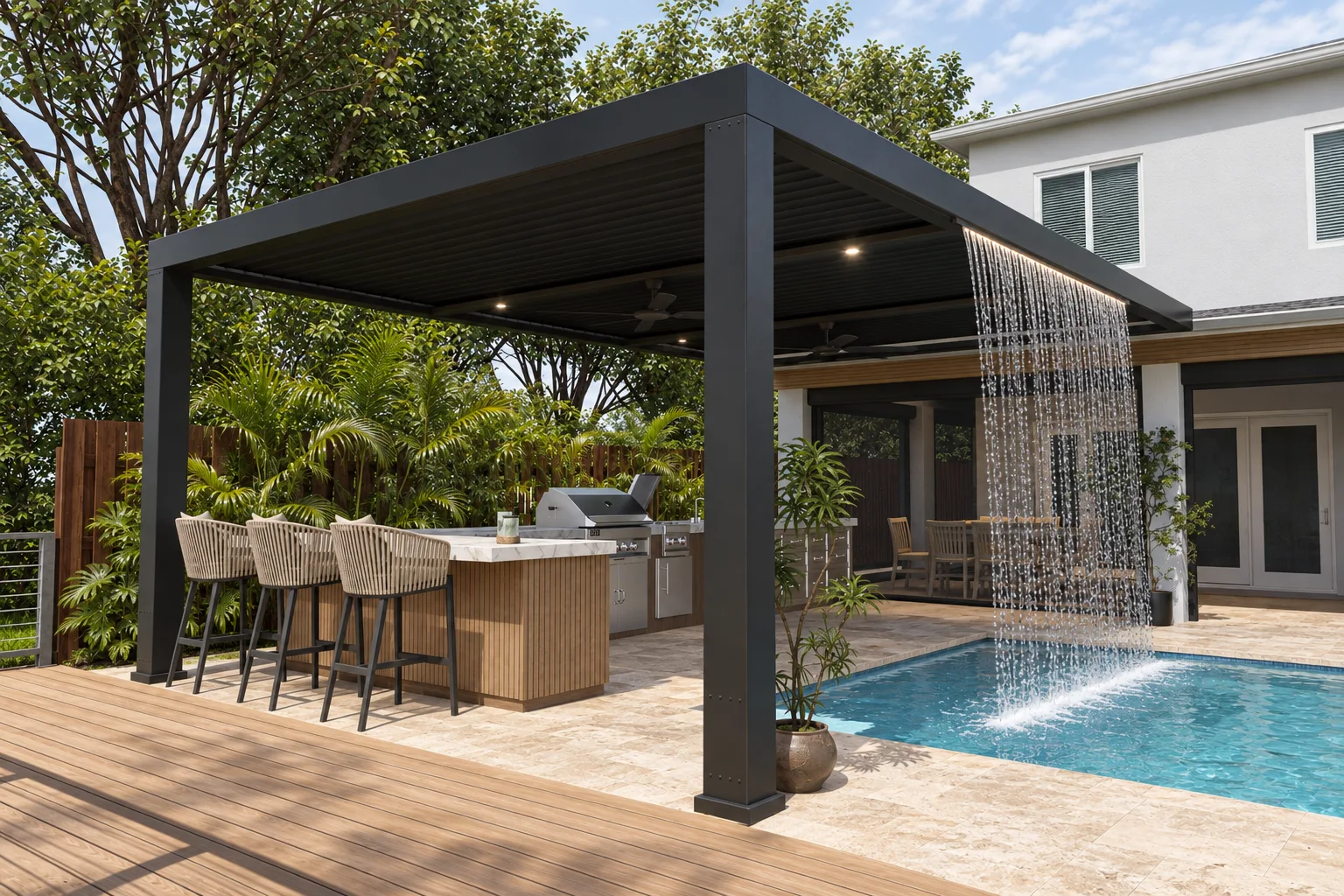

From the corner
Across the pool
From aboveOptional upgrade
Burlwood louvers.
The same Flat 6 roof, with the louvers in StruXure’s Burlwood wood-grain finish. Drag the slider to compare it with the standard finish.
Burlwood upgrade+$17,640All 392 sq ft of louvers
StandardBurlwood Burlwood at dusk
From the deck
Across the pool
From the corner
From above
From the deckAcross the poolFrom the cornerFrom aboveWhat’s included
Everything in your proposal.
Engineering, permits, electrical, delivery and installation are all part of the price. Here’s what goes into the system.
01
The roof
StruXure Flat 6 louvers in two 14′ × 14′ zones.
- Patented dual-wall louver, pivots up to 170°
- Interlocking rain channels into a 360° gutter
- X Drive motor with a 7-year warranty
02
Structure
Built to Florida hurricane engineering.
- Two engineered isolated footings
- Two 8″ × 8″ columns, 10′ high
- Custom welded post bases
- 60 lf of 2″ × 10″ beams
- Covers & collars to hide the fasteners
- 24 lf of 7″ super gutter at the house
03
Controls
StruXure OS, powered by Somfy.
- Controls both zones, together or apart
- 5-channel handheld remote
- 5-channel wireless wall switch
- Rain sensor that closes the roof automatically
04
Light & air
A 24′ fan beam across the roof.
- Four 4.75″ recessed LEDs, warm white, wet rated
- Wiring and install for one owner-supplied fan
05
Sound Promo
Sonance Premium Sound, included with this order.
- Pair of Sonance STX 4″ speakers, IP67 rated
- StruXure color-matched grills
- Sonos amp, installed and set up
06
We handle the rest
From drawings to walkthrough.
- Site-specific engineering, signed and sealed
- Permits, fees and inspections
- Electrical plan, permit and GFI outlet
- Shipping and delivery to the site
- Installation, programming and a walkthrough
Investment
Your price.
Total investment $107,314.51
Subtotal$113,054.95
Service discount−$5,740.44
Proposal dated September 25, 2026. Pricing is valid for 30 days.| 20% | DepositTo get started | $21,462.90 |
| 30% | Pre-construction meetingBefore engineering and permits | $32,194.35 |
| 40% | CommencementWhen installation begins | $42,925.80 |
| 10% | Substantial completionAfter your walkthrough | $10,731.46 |
Option: Burlwood wood-grain louversUpgrade all 392 sq ft of louvers to a wood-grain finishSee it on your roof+$17,640.00
Closing argument
Ready when you are.
Call or email Eric with any questions, or to move forward with the deposit.
